FF06 涂鸦版执手式智能锁（Tuya）

No. FD-054 Views 4

Square-lever interior lock · one-touch open · Tuya Smart ecosystem · smart-home linkage

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Version Comparison · One Hardware, Four Ecosystems

Version	Platform	Networking	Best For
TTLock Version	TTLock App (rental / hotel / housing ecosystem)	Bluetooth / WiFi / Gateway / NB-IoT	Hotels, apartments, rental projects	View →
Tuya VersionCurrent	Tuya Smart App (smart-home linkage)	Tuya Bluetooth / Tuya WiFi / Zigbee / Remote	Homes, B&Bs, smart-home scenes
BLUE LOCK Version	FANDAN BLUE LOCK platform (App + mini-program, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Own-brand & private-deployment clients	View →
FANDAN Version	FANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Projects needing the full FANDAN software suite	View →

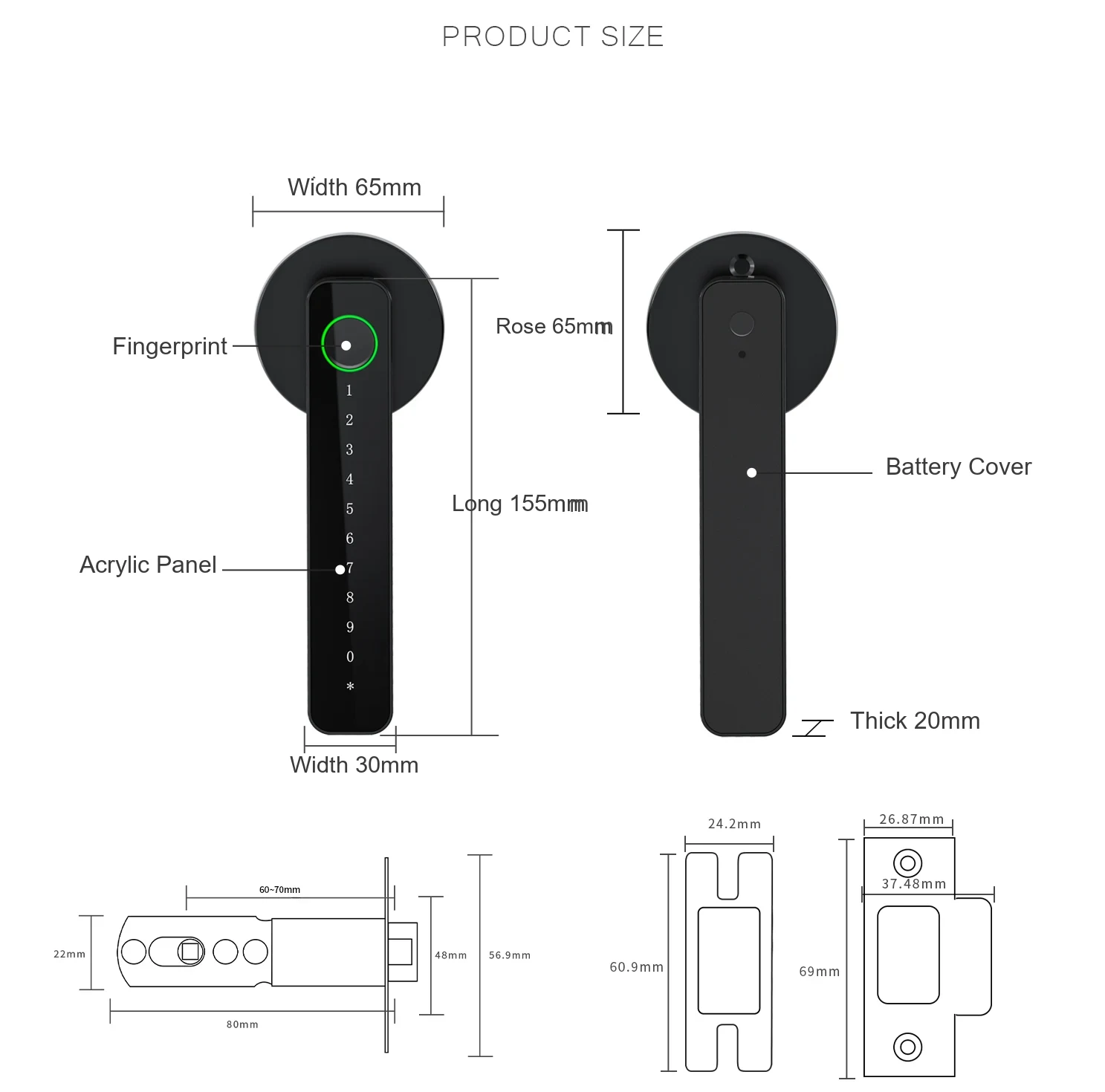

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart / Smart Life App

Unlock

Fingerprint · PIN · card · key · Bluetooth App · WeChat temp PIN · combo · passage mode

Users

200 users (card / PIN / fingerprint shared)

PIN Length

6-10 digits

Anti-peep PIN

Up to 24 digits with padding

Auto Lockout

Locks after 5 failed attempts

FAR

≤0.0004%

FRR

≤0.015%

Static Current

≤65μA

Working Current

<250mA

Power

6.5V (4 × 1.5V AAA alkaline batteries)

Emergency Power

5V USB

Temperature

-20℃ ~ 70℃

Humidity

45% ~ 90%RH

Networking

Tuya Bluetooth / WiFi / Zigbee / remote / 4G-CAT (optional), smart-home linkage

Standard Features

Low-battery voice alert · anti-pry alarm · access logs · CN/EN bilingual

Extensions

Remote control · anti-pry/anti-hijack alerts · battery reminder · remote temp PIN

Door Thickness

38-55mm

Panel Size

155 × 30 × 20mm, 65mm round rose (acrylic panel)

Unit Weight

0.863kg

Gift Box

225×145×102mm

Carton

760×470×225mm

Qty per Carton

20 pcs / 18.2kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
