F9SE+ 涂鸦版防水断桥铝锁（Tuya）

No. FD-071 Views 4

Waterproof bridge-aluminum lever lock · Tuya Smart ecosystem · fits 3585 mortise · smart-home linkage

Price TBA

Project-based pricing · Contact us for a quote

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

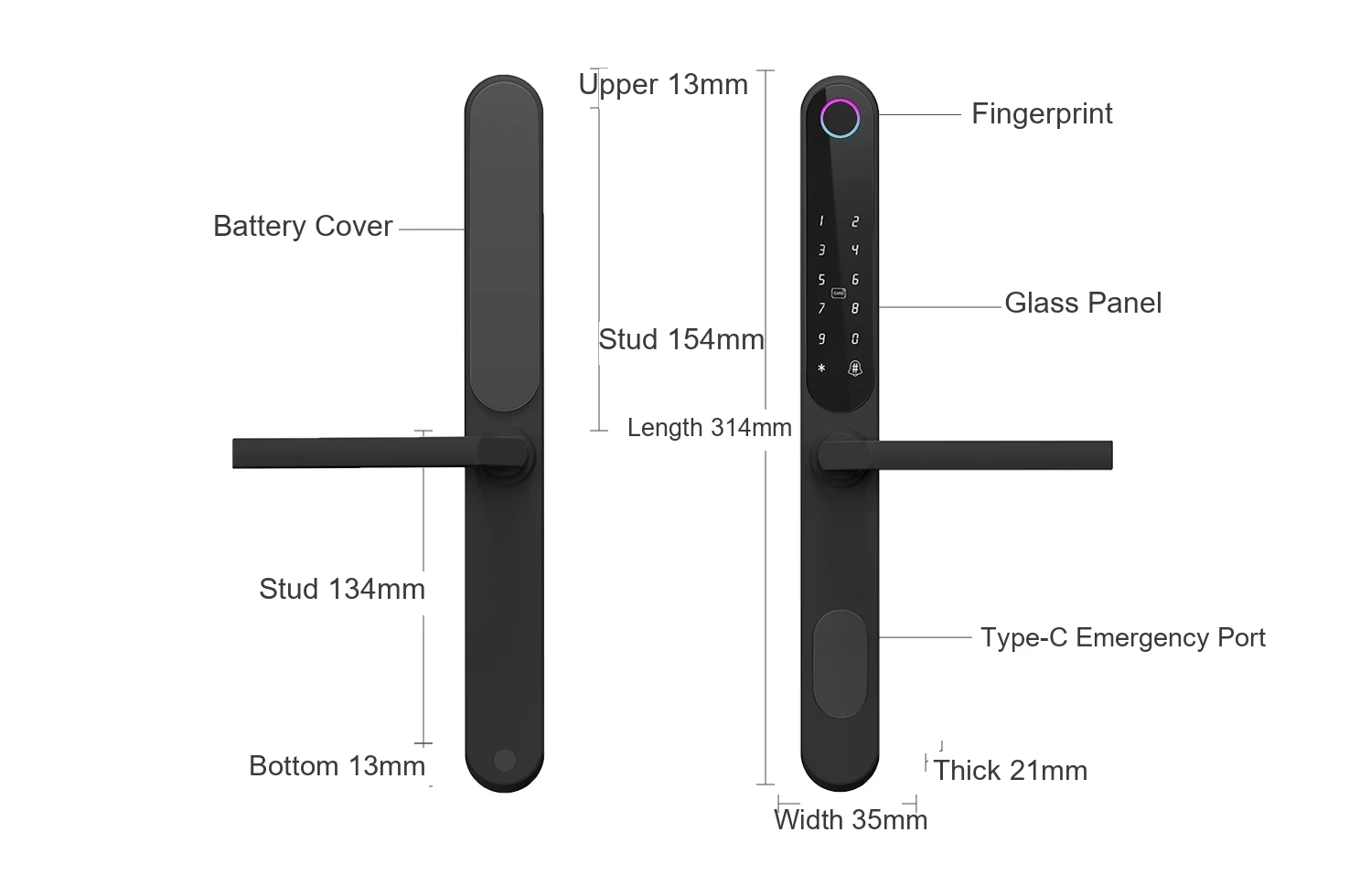

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart / Smart Life App

Unlock

Fingerprint · PIN · IC card · key · App remote

Networking

Tuya Bluetooth / Tuya WiFi (optional), smart-home linkage

Admins

10 (by permission)

Users

200 (shared)

Fingerprint

50–100 (shared), 5-angle enrollment

200 groups (shared), 6-10 digits

Cards

200 cards (shared)

Anti-peep PIN

≤16 digits with random padding

Low Battery Alert

Alert at 4.8V; lockout below 4.5V

Static Current

≤80μA

Dynamic Current

>400mA

Power

6V (4 × AA batteries)

Emergency Power

5V DC, Type-C port

Quick Sleep

Double-tap "*" to sleep

Humidity

20% ~ 90%RH

Temperature

-25℃ ~ 70℃

Retry Lockout

Locks after 5 failed attempts

Access Logs

200 records

Temporary Users

Up to 20

Mortise

Fits 3585 mortise (strike 198×23 / 198×26mm)

Panel Size

314 × 35 × 21mm (glass panel)

Unit Weight

1.34kg

Gift Box

354×225×100.5mm

Carton

545×466×390mm

Qty per Carton

10 pcs / 14.83kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
