F9PRO+ 通通版防水断桥铝锁(TTLock)

F9PRO+ 通通版防水断桥铝锁(TTLock)

No. FD-072 Views 2

Waterproof bridge-aluminum lever lock · remote unlock · fits 3585 mortise · TTLock ecosystem

Price TBA

Project-based pricing · Contact us for a quote

WhatsApp Get a Quote
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Share:

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

Version Comparison · One Hardware, Four Ecosystems

VersionPlatformNetworkingBest For
TTLock VersionCurrentTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projects
Tuya VersionTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenesView →

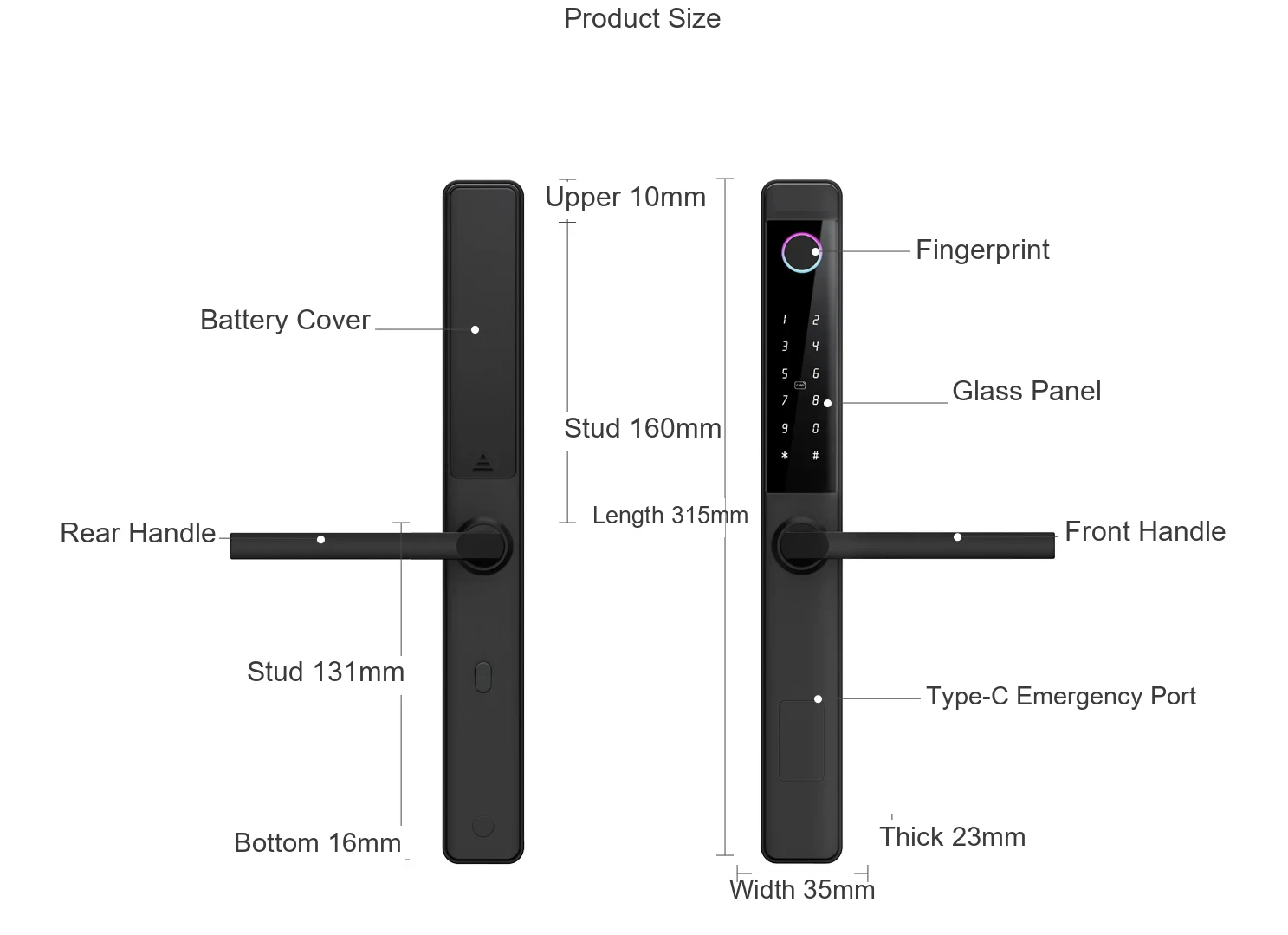

Product Size

F9PRO+ 通通版防水断桥铝锁(TTLock) size

Networking (Optional)

Bluetooth WiFi Gateway NB-IoT

Specifications

Platform
TTLock App (rental / hotel / housing ecosystem)
Unlock
Fingerprint · PIN · card · App · remote
Fingerprint Sensor
Semiconductor live-finger verification
Fingerprint
50 (semiconductor sensor)
Cards
1000 cards (MIFARE M1)
PIN Codes
150 custom & permanent · unlimited dynamic
Bluetooth
Bluetooth 5.0 BLE
Networking
Bluetooth / WiFi gateway (optional)
App Support
Android 4.3+ · iOS 7.0+
Power
4 × 1.5V AA alkaline batteries
Battery Life
approx. 12 months
Standby Power
≤50μA (standby current 100μA)
Working Current
<200mA
Voltage
4.5~9V
Emergency Power
Type-C USB
Unlock Speed
≈1.5s
Temperature
-20℃ ~ 70℃
Keypad
Capacitive touch keypad
Mortise
Fits 3585 mortise (strike 198×23 / 198×26mm)
Panel Size
315 × 35 × 23mm (glass panel)
Unit Weight
1.38kg
Gift Box
354×225×100.5mm
Carton
545×466×390mm
Qty per Carton
10 pcs / 14.83kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
