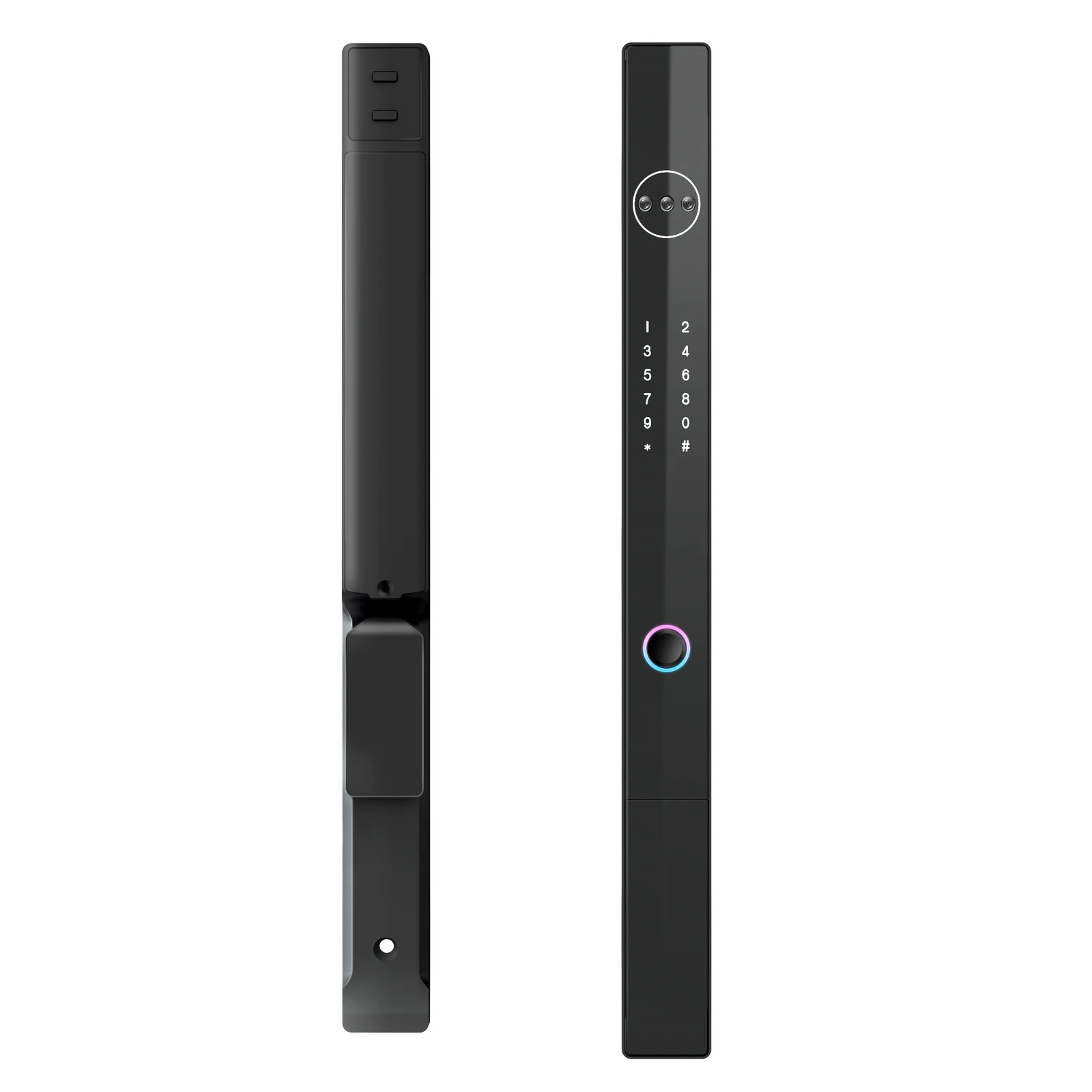

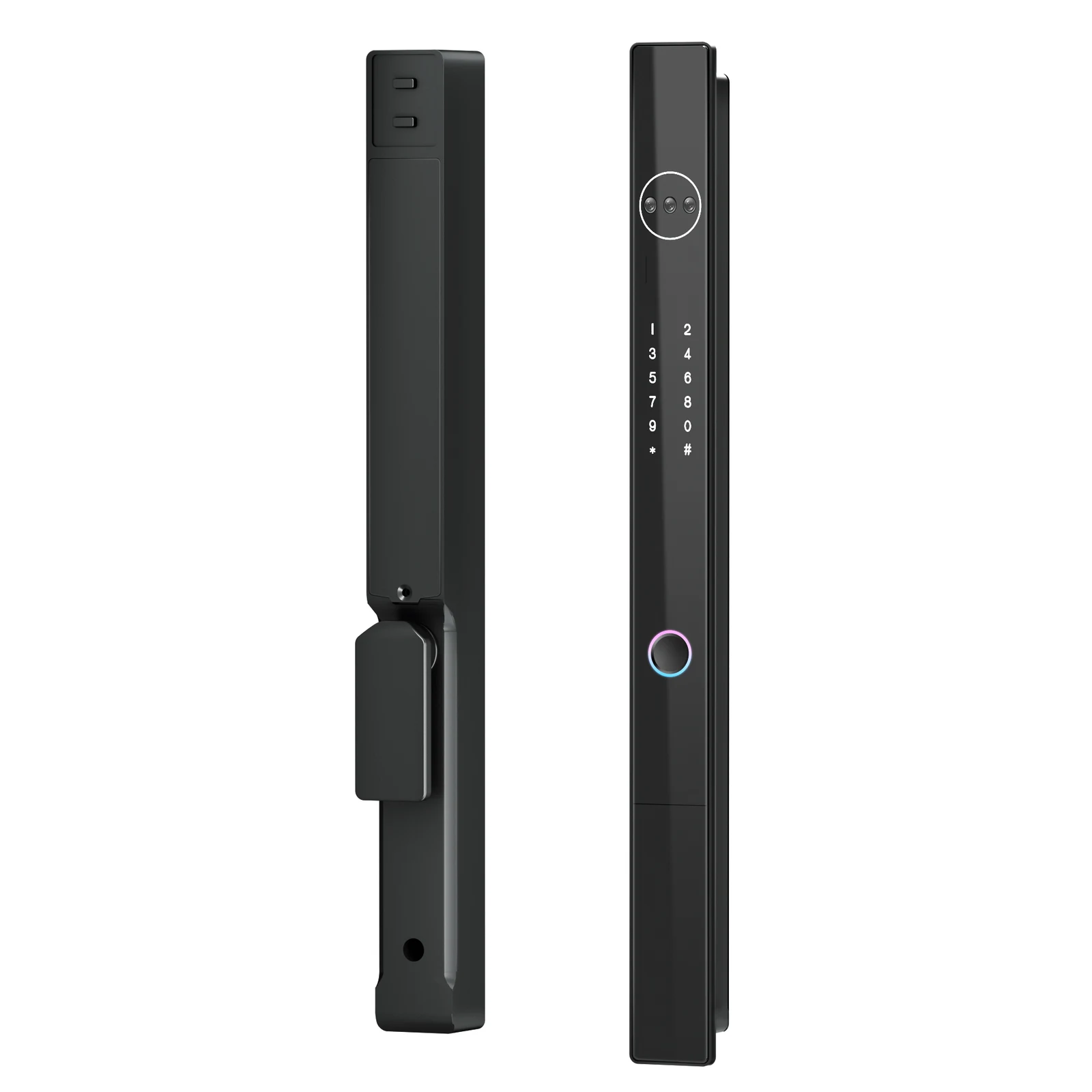

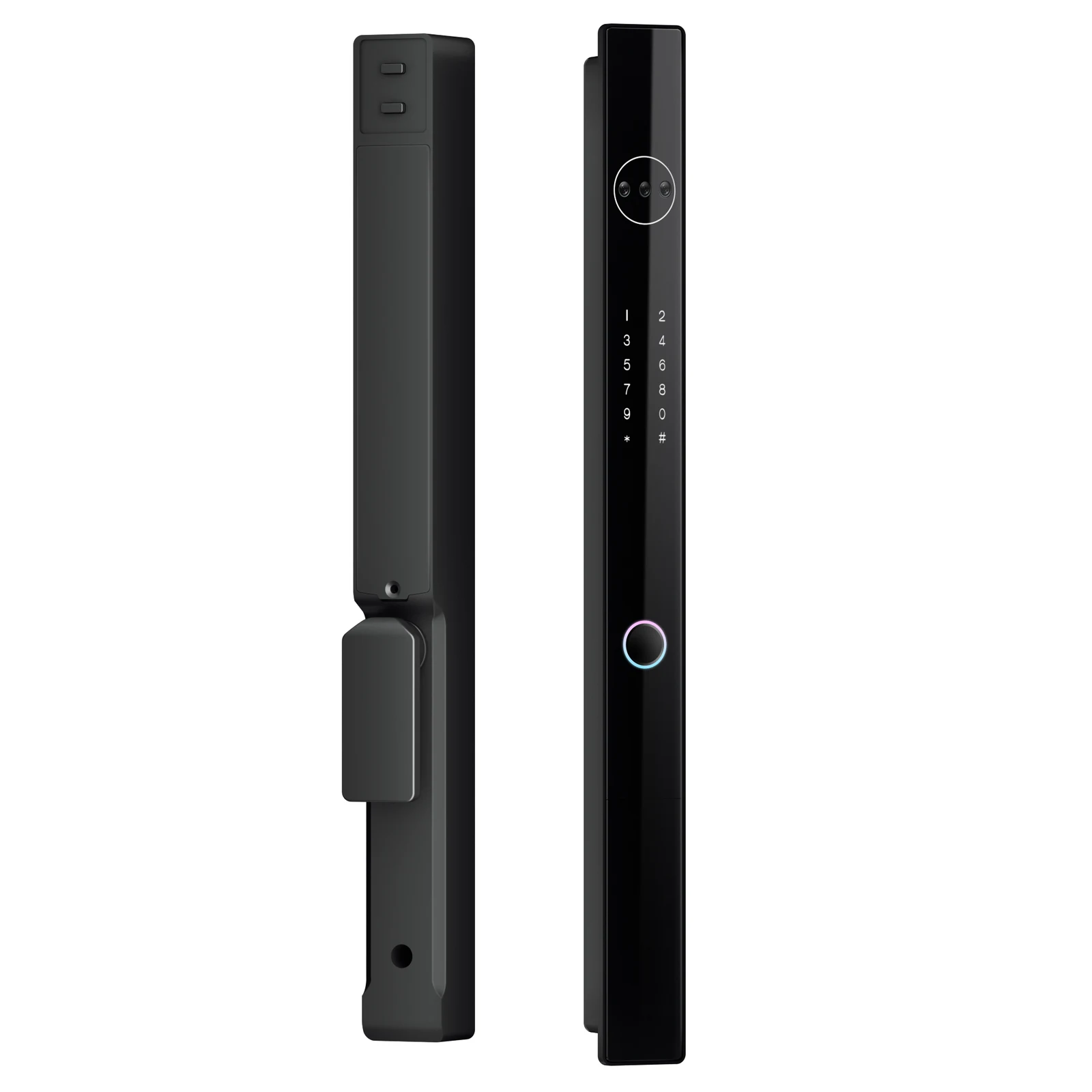

F9AUTO 涂鸦版全自动断桥铝锁（Tuya）

No. FD-068 Views 3

Full-auto bridge-aluminum lock · 3D face + peephole radar · lithium · Tuya Smart ecosystem

Price TBA

Project-based pricing · Contact us for a quote

Lithium battery included · Built-in lithium battery ships with the lock via battery-capable express line (MSDS / UN38.3 certified), ~7-12 days

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Version Comparison · One Hardware, Four Ecosystems

Version	Platform	Networking	Best For
TTLock Version	TTLock App (rental / hotel / housing ecosystem)	Bluetooth / WiFi / Gateway / NB-IoT	Hotels, apartments, rental projects	View →
Tuya VersionCurrent	Tuya Smart App (smart-home linkage)	Tuya Bluetooth / Tuya WiFi / Zigbee / Remote	Homes, B&Bs, smart-home scenes

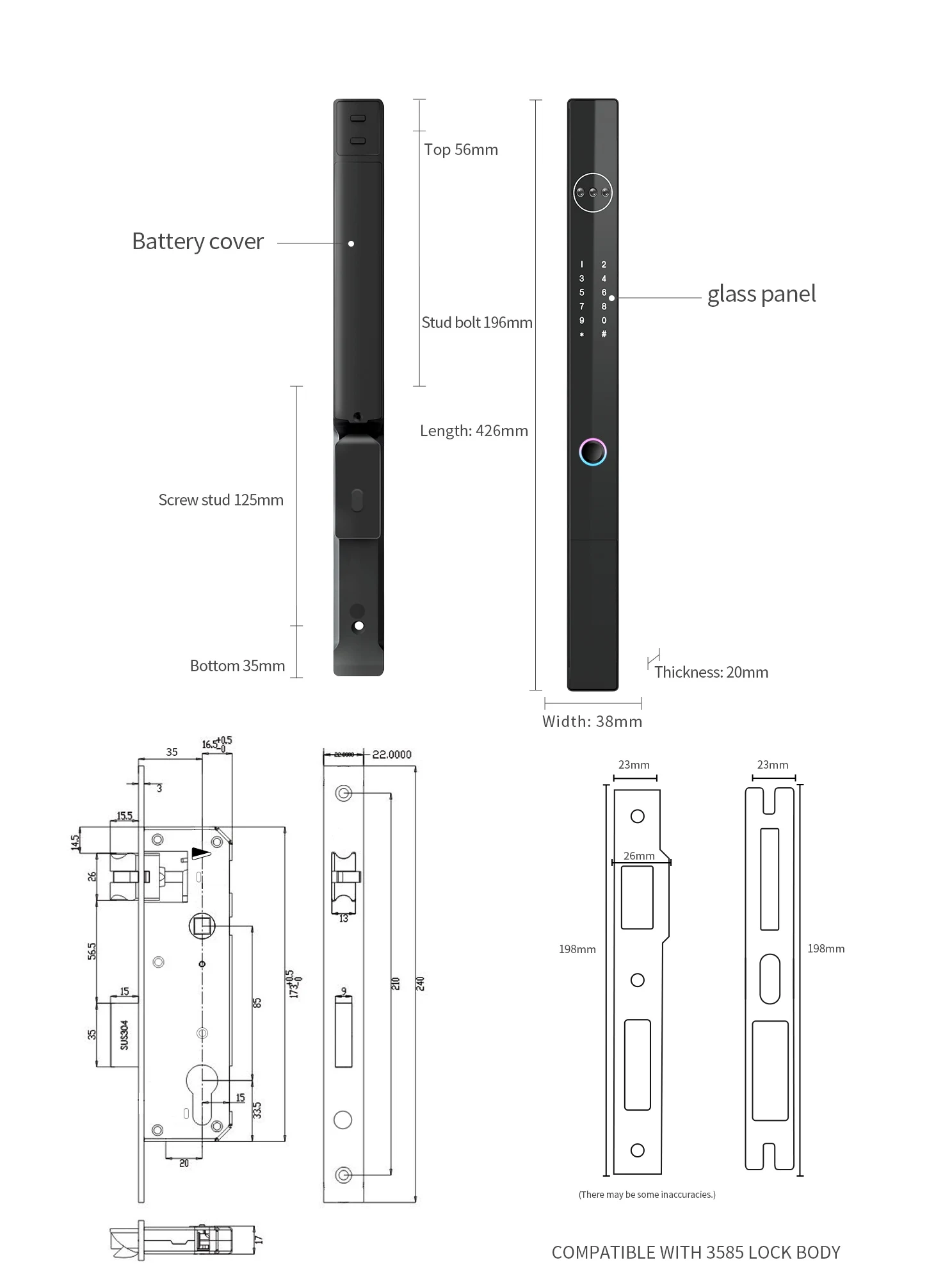

Product Size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform

Tuya Smart / Smart Life App

Unlock

App · PIN · fingerprint · IC card · remote · face · one-touch

Face Recognition

Up to 50 faces, 0.5s warm / 1.4s cold start

Recognition Distance

0.4-1m (best at 0.6m)

Fingerprint

50 (semiconductor sensor)

Cards

1000 cards (MIFARE M1)

PIN Codes

Unlimited dynamic PINs

FAR

<0.001%

FRR

<1.0%

Bluetooth

Bluetooth 5.0 BLE

Networking

Tuya WiFi (2.4G) / Bluetooth, smart-home linkage

App Support

Android 4.3+ · iOS 7.0+

Power

7.4V dual lithium batteries (8.4V full)

Low Battery Alert

7.0V

Standby Current

162μA (incl. peephole / radar / face modules)

Working Current

<3A (average)

Temperature

-10℃ ~ 60℃

Keypad

Capacitive touch keypad

Mortise

Fits 3585 mortise (strike 198×23 / 198×26mm)

Panel Size

426 × 38 × 20mm (glass panel)

Unit Weight

1.6kg

Gift Box

354×225×100.5mm

Carton

545×466×390mm

Qty per Carton

10 pcs / 18.08kg

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing

Interested?

Get a Quote
