B50 涂鸦版圆型辅助锁(Tuya)

B50 涂鸦版圆型辅助锁(Tuya)

No. FD-075 Views 4

Round smart auxiliary lock · Brazil export model · Tuya Smart ecosystem · smart-home linkage

Price TBA

Project-based pricing · Contact us for a quote

WhatsApp Get a Quote
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Share:

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Version Comparison · One Hardware, Four Ecosystems

VersionPlatformNetworkingBest For
TTLock VersionTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projectsView →
Tuya VersionCurrentTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenes

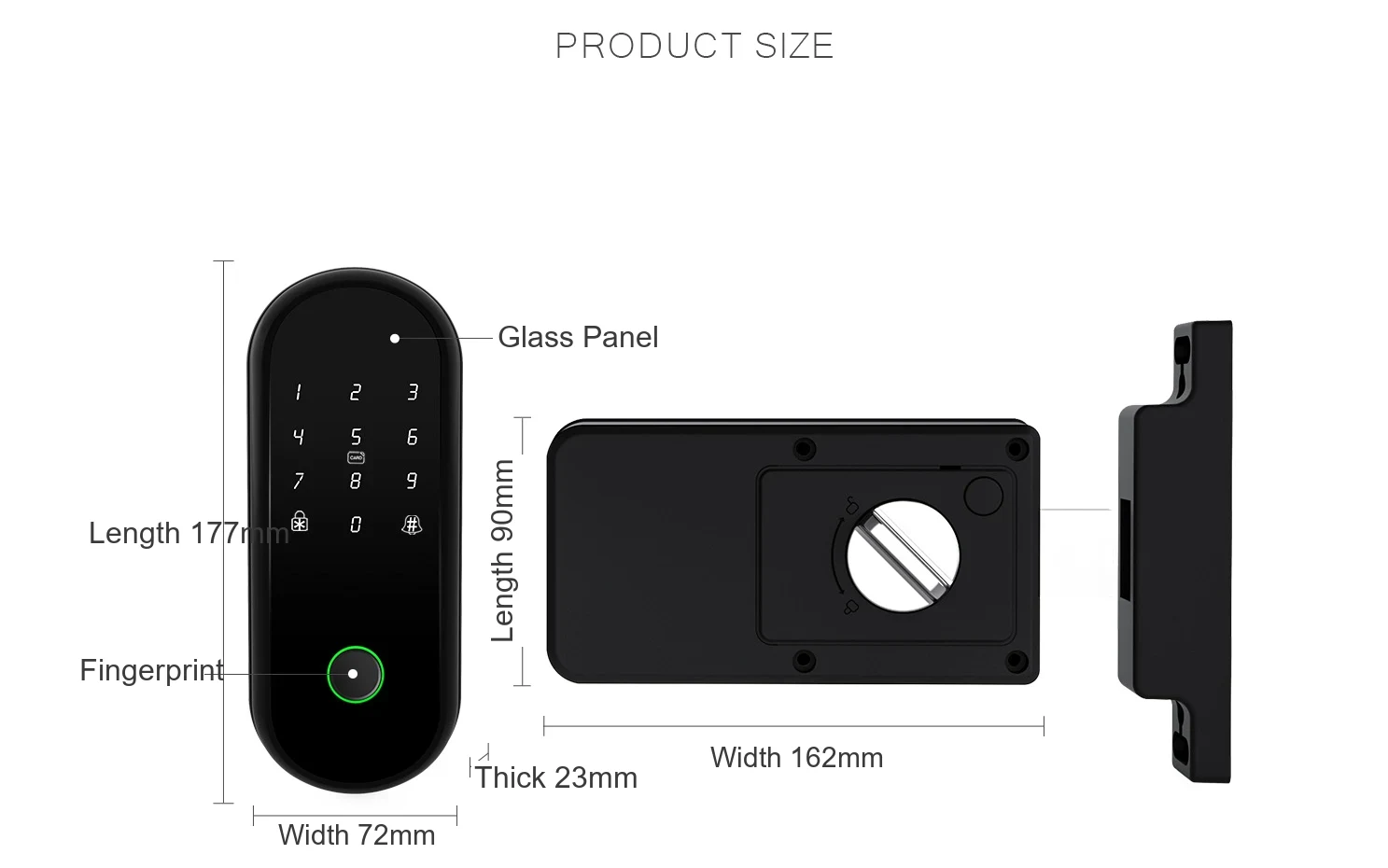

Product Size

B50 涂鸦版圆型辅助锁(Tuya) size

Networking (Optional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Specifications

Platform
Tuya Smart / Smart Life App
Unlock
Fingerprint · PIN · card · App · key
Fingerprint Sensor
Semiconductor live-finger verification
Fingerprint
50 (semiconductor sensor)
Cards
200 cards (MIFARE M1)
PIN Codes
150 custom & permanent · unlimited dynamic
Bluetooth
Bluetooth 4.1 BLE
Networking
Tuya Bluetooth / Tuya WiFi (optional), smart-home linkage
App Support
Android 4.3+ · iOS 7.0+
Power
4 × 1.5V AA alkaline batteries
Battery Life
approx. 12 months
Standby Power
≤50μA (standby current 65μA)
Working Current
<200mA
Voltage
4.5~9V
Emergency Power
Type-C USB
Unlock Speed
≈1.5s
Temperature
-20℃ ~ 70℃
Keypad
Capacitive touch keypad
Panel Size
177 × 72 × 23mm (glass panel)
Rear Assembly
162 × 90mm
Unit Weight
0.842kg
Gift Box
260×65×215mm
Carton
455×375×275mm
Qty per Carton
10 pcs / carton

Accessories & Extensions

Universal add-ons for all FANDAN smart locks — pick as needed

Gateway

Bridge between Bluetooth locks and the server: sync unlock records, alarm reports & remote management

Wireless Key R1

Bluetooth remote — tap to unlock from a distance

Card Encoder

Hotel-style card issuing: master / floor / building / room cards (MiFare S50)

Door Sensor

Auto-lock on close, with real-time door status

Elevator Control

App-managed elevator access via IC cards

Fingerprint Enroller

Remote fingerprint enrollment & push — ideal with NB-IoT locks and public housing
