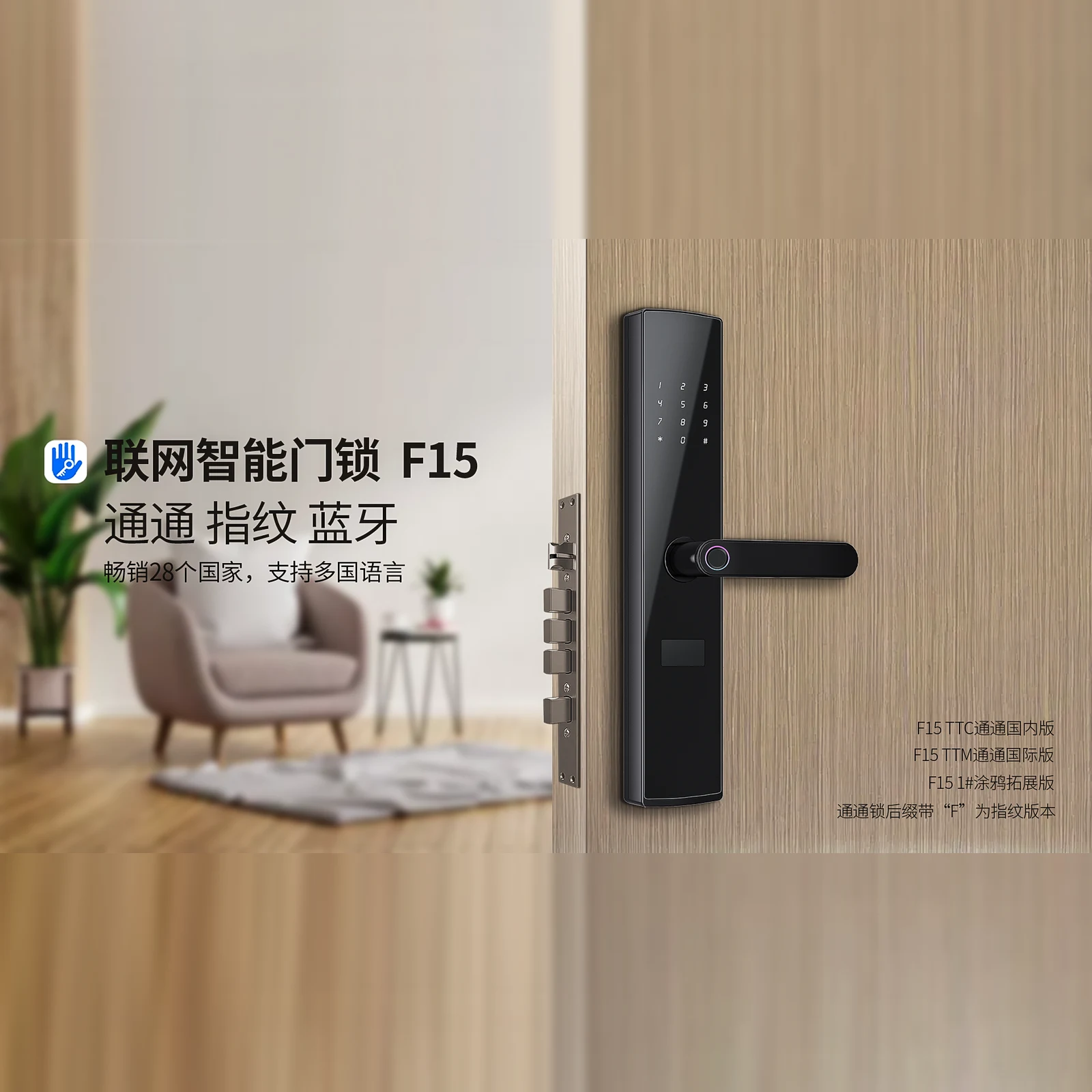

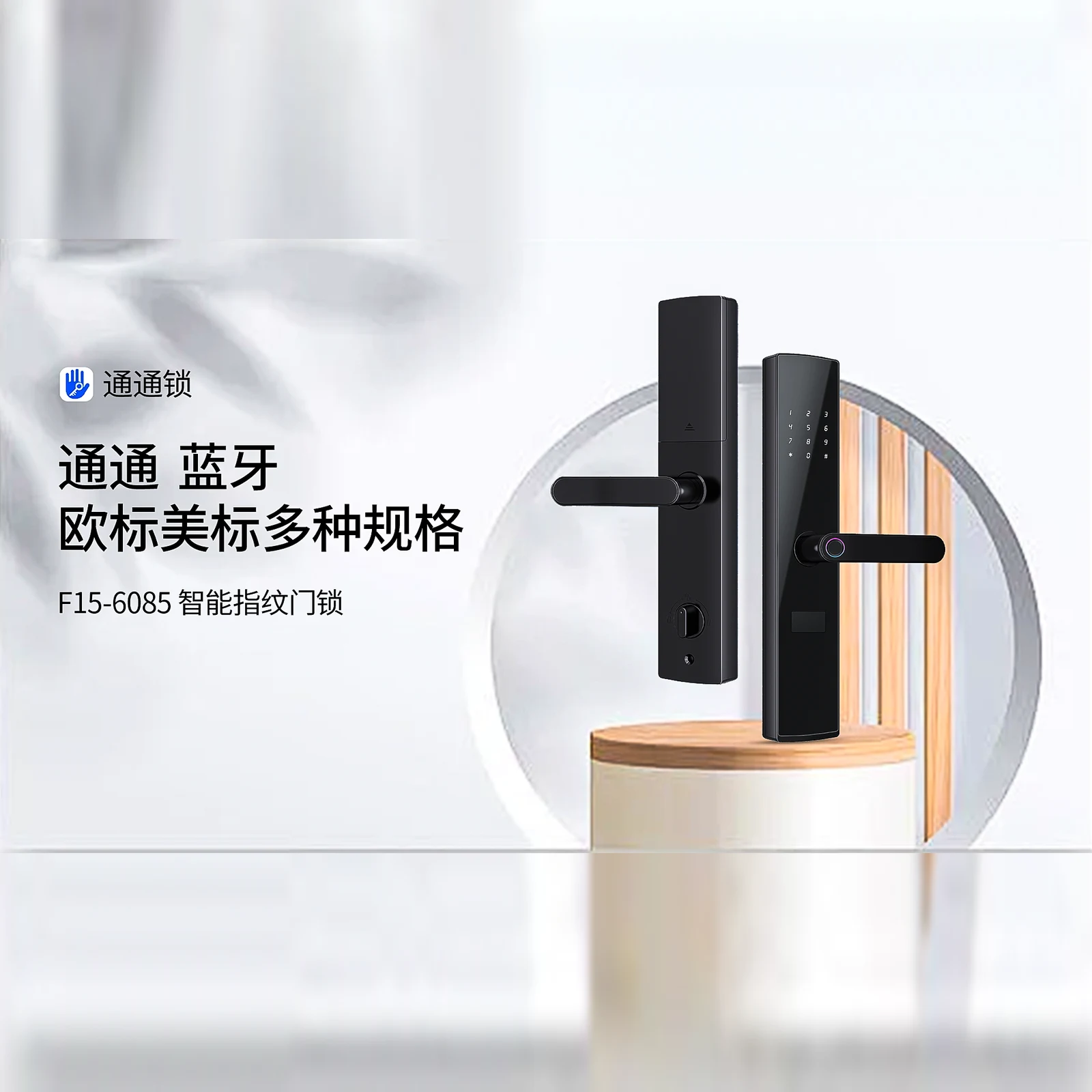

F15 通通版执手式指纹锁(TTLock)

F15 Cerradura de manija con huella TTLock

No. FD-005 Vistas 30

Manija grip-to-open de apertura instantánea · panel de vidrio templado · lector de huella semiconductor · ecosistema TTLock para apartamentos y hoteles

Precio a definir

Precios por proyecto · Contáctenos para cotización

WhatsApp Cotizar
Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival
Compartir:

TTLock Version · Platform Ecosystem

The TTLock version runs on the global TTLock ecosystem, compatible with rental, hotel and public-housing management apps. Dynamic PINs, remote eKeys and cloud-synced access logs let operators issue and revoke access in bulk by lease term — ideal for hotels, serviced apartments and large rental projects, and instantly familiar to overseas teams already using TTLock.

Comparación de versiones · Un hardware, cuatro ecosistemas

VersiónPlataformaConectividadIdeal para
TTLock VersionActualTTLock App (rental / hotel / housing ecosystem)Bluetooth / WiFi / Gateway / NB-IoTHotels, apartments, rental projects
Tuya VersionTuya Smart App (smart-home linkage)Tuya Bluetooth / Tuya WiFi / Zigbee / RemoteHomes, B&Bs, smart-home scenesVer →
BLUE LOCK VersionFANDAN BLUE LOCK platform (App + mini-program, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteOwn-brand & private-deployment clientsVer →
FANDAN VersionFANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)Bluetooth / WiFi Gateway / 4G Gateway / RemoteProjects needing the full FANDAN software suiteVer →

Dimensiones

F15 通通版执手式指纹锁(TTLock) size

Conectividad (opcional)

Bluetooth WiFi Gateway NB-IoT

Especificaciones

Platform
TTLock App (rental / hotel / public-housing ecosystem)
Unlock
Fingerprint · PIN · Card · App · Key
Fingerprint
Semiconductor live-fingerprint verification
Panel
Tempered glass panel · grip-to-open handle
FP Capacity
100 fingerprints
PIN Codes
Unlimited dynamic · 150 custom & permanent
Cards
200 cards (MIFARE M1)
Battery
4×AA alkaline, ~12 months
Emergency Power
Type-C USB
Power Consumption
≤50μA; standby 65μA
Working Current
250mA
Voltage
4.5~9V
Bluetooth
Bluetooth BLE
Networking
Bluetooth / WiFi / Gateway / NB-IoT
App Support
Android 4.3+ · iOS 7.0+
Unlock Speed
≈1.5s
Temperature
-20℃ ~ 70℃
Keypad
Touch keypad
Panel Size
362 × 70 × 21mm
Lock Body
6068 mortise (240mm)
Unit Weight
1.7Kg
Gift Box
185×83×412mm
Carton
450×390×425mm
Qty per Carton
10 pcs / 18.08kg

Accesorios y extensiones

Complementos universales para todas las cerraduras FANDAN — elija según necesidad

Gateway

Puente entre cerraduras Bluetooth y el servidor: sincroniza registros, alarmas y gestión remota

Llave inalámbrica R1

Control remoto Bluetooth — abra a distancia con un toque

Codificador de tarjetas

Emisión estilo hotel: tarjetas maestra / piso / edificio / habitación (MiFare S50)

Sensor de puerta

Cierre automático al cerrar, con estado de puerta en tiempo real

Control de ascensor

Acceso a ascensores gestionado por app con tarjetas IC

Enrolador de huellas

Registro y envío remoto de huellas — ideal con cerraduras NB-IoT y vivienda pública

Interested?

Contáctenos para ficha técnica y precios

Cotizar
