B60 Cerradura rim inteligente Tuya

No. FD-002 Vistas 36

Instalación sin perforar · 6 métodos de desbloqueo · ecosistema Tuya Smart · vinculación con hogar inteligente

Precio a definir

Precios por proyecto · Contáctenos para cotización

Dry-battery model · batteries not included · Ships without batteries via standard lines (faster & cheaper) — use local AA batteries on arrival

Tuya Version · Platform Ecosystem

The Tuya version is Powered by Tuya and joins the global Tuya Smart ecosystem: unlocking can trigger lights, curtains and cameras, and the lock works with mainstream voice assistants. With 8 switchable languages, it drops straight into homes, B&Bs and integration projects already delivered on Tuya — no new app or automation rework needed.

Comparación de versiones · Un hardware, cuatro ecosistemas

Versión	Plataforma	Conectividad	Ideal para
TTLock Version	TTLock App (rental / hotel / housing ecosystem)	Bluetooth / WiFi / Gateway / NB-IoT	Hotels, apartments, rental projects	Ver →
Tuya VersionActual	Tuya Smart App (smart-home linkage)	Tuya Bluetooth / Tuya WiFi / Zigbee / Remote	Homes, B&Bs, smart-home scenes
BLUE LOCK Version	FANDAN BLUE LOCK platform (App + mini-program, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Own-brand & private-deployment clients	Ver →
FANDAN Version	FANDAN full suite (FANDAN Smart App / Manager / PMS / Card Room, private deployment)	Bluetooth / WiFi Gateway / 4G Gateway / Remote	Projects needing the full FANDAN software suite	Ver →

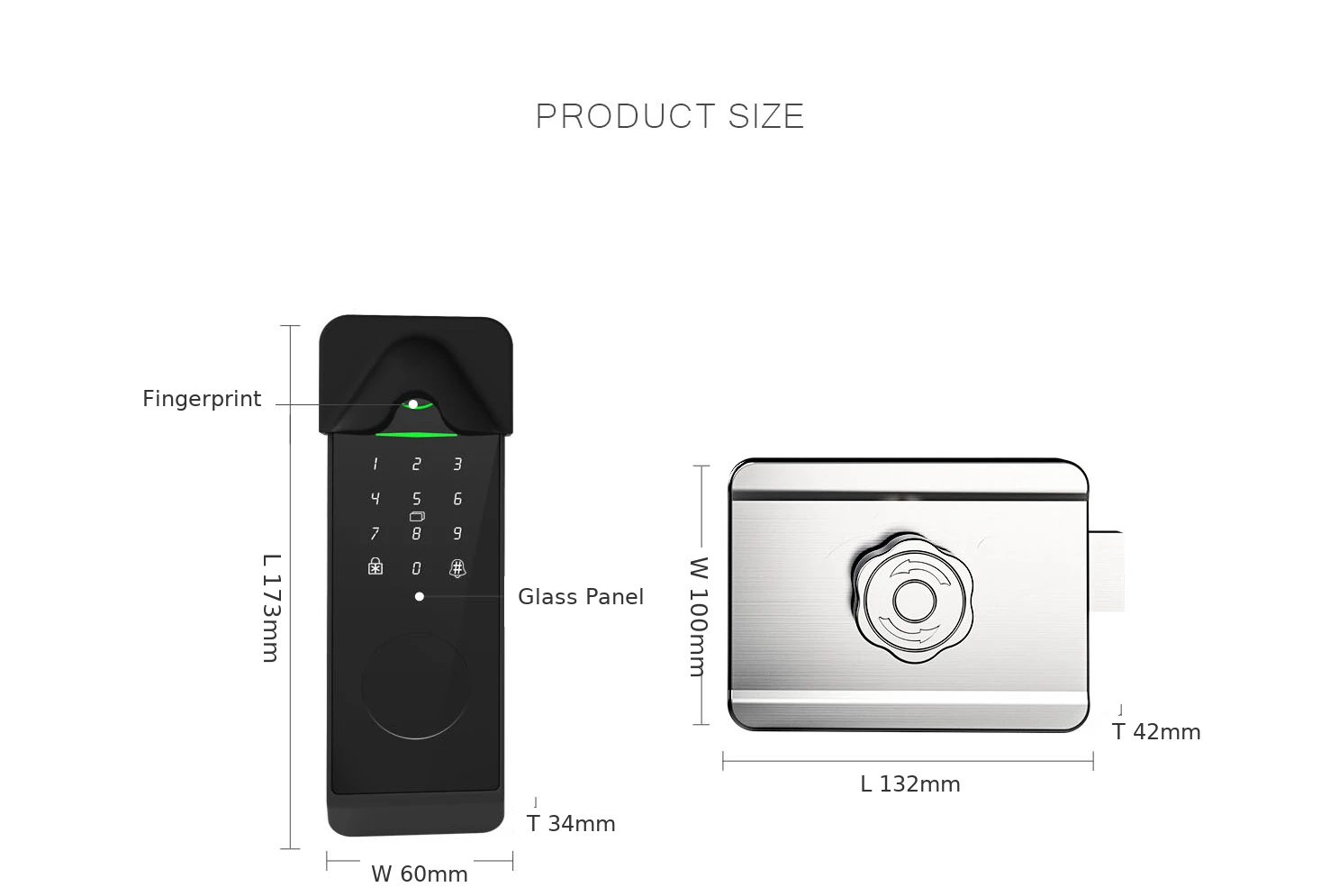

Dimensiones

Conectividad (opcional)

Tuya Bluetooth Tuya WiFi Zigbee Remote

Especificaciones

Platform

Tuya Smart App (Powered by Tuya, smart-home linkage)

Mainboard

BLUE LOCK board, optional Tuya solution

Unlock

App · fingerprint · PIN · card · key · temp PIN · combo · passage mode

Admins

512 (by permission)

Users

512

Fingerprint

Up to 50, 5-angle enrollment

512 groups, 6-10 digits

Cards

512 cards

Anti-peep PIN

≤16 digits with random padding

Low Battery Alert

Alert at 4.8V; lockout below 4.5V

Static Current

≤100μA

Dynamic Current

>250mA

Power

6V, 4×AA (8 optional)

Emergency Power

5V DC USB

Networking

Tuya Bluetooth / Tuya WiFi / Zigbee / Remote

Standard Features

Low-battery voice alert, pry alarm, 5-strike lockout, anti-peep PIN, unlock records, CN/EN system

Extensions

Remote control, records, anti-pry/anti-hijack alarms, battery reminders, push, timed PINs, remote, Tmall Genie app

Languages

CN/EN (5 or 8 languages optional)

Temperature

-25℃ ~ 70℃

Humidity

20% ~ 90%RH

Quick Sleep

Double-tap "*" to sleep

Panel Size

173 × 60 × 34mm

Lock Body Size

132 × 100 × 42mm

Unit Weight

1.24Kg

Gift Box

225×98×197mm

Carton

455×375×275mm

Qty per Carton

10 pcs

Accesorios y extensiones

Complementos universales para todas las cerraduras FANDAN — elija según necesidad

Gateway

Puente entre cerraduras Bluetooth y el servidor: sincroniza registros, alarmas y gestión remota

Llave inalámbrica R1

Control remoto Bluetooth — abra a distancia con un toque

Codificador de tarjetas

Emisión estilo hotel: tarjetas maestra / piso / edificio / habitación (MiFare S50)

Sensor de puerta

Cierre automático al cerrar, con estado de puerta en tiempo real

Control de ascensor

Acceso a ascensores gestionado por app con tarjetas IC

Enrolador de huellas

Registro y envío remoto de huellas — ideal con cerraduras NB-IoT y vivienda pública
